Reference

Accessor Methods

The following methods are available via traja.accessor.TrajaAccessor:

class traja.accessor.TrajaAccessor(pandas_obj)

Accessor for pandas DataFrame with trajectory-specific numerical and analytical functions.

Access with df.traja.

_has_z() → bool

Check if trajectory has z coordinate.

property center

Return the center point of this trajectory.

Returns:

(x, y) for 2D or (x, y, z) for 3D trajectories

Return type:

tuple

property bounds

Return limits of dimensions.

Returns:

((xmin, xmax), (ymin, ymax)) for 2D or ((xmin, xmax), (ymin, ymax), (zmin, zmax)) for 3D

Return type:

tuple

night(begin: str = '19:00', end: str = '7:00')

Get nighttime dataset between begin and end.

Parameters:

• begin (str) – (Default value = ‘19:00’)

• end (str) – (Default value = ‘7:00’)

Returns:

Trajectory during night.

Return type:

trj (TrajaDataFrame)

day(begin: str = '7:00', end: str = '19:00')

Get daytime dataset between begin and end.

Parameters:

• begin (str) – (Default value = ‘7:00’)

• end (str) – (Default value = ‘19:00’)

Returns:

Trajectory during day.

Return type:

trj (TrajaDataFrame)

_get_time_col()

Returns time column in trajectory.

Args:

Returns:

name of time column, ‘index’ or None

Return type:

time_col (str or None)

between(begin: str, end: str)

Returns trajectory between begin and end` if time column is datetime64.

Parameters:

• begin (str) – Beginning of time slice.

• end (str) – End of time slice.

Returns:

Dataframe between values.

Return type:

trj (TrajaDataFrame)

>>> s = pd.to_datetime(pd.Series(['Jun 30 2000 12:00:01', 'Jun 30 2000 12:00:02', 'Jun 30 2000 12:00:03']))
>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3],'time':s})
>>> df.traja.between('12:00:00','12:00:01')
                 time  x  y
0 2000-06-30 12:00:01  0  1

resample_time(step_time: float)

Returns trajectory resampled with step_time.

Parameters:

step_time (float) – Step time

Returns:

Dataframe resampled.

Return type:

trj (TrajaDataFrame)

rediscretize_points(R, **kwargs)

Rediscretize points

property speed

Calculate instantaneous speed.

Returns:

Speed at each time point

Return type:

pd.Series

Note

Requires time column or fps metadata

property displacement

Calculate displacement between consecutive points.

Returns:

Displacement at each step (supports 2D and 3D)

Return type:

pd.Series

summary()

Generate summary statistics for the trajectory.

Returns:

Dictionary containing trajectory statistics

Return type:

dict

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> stats = df.traja.summary()
>>> stats['n_points']
3
>>> stats['distance'] > 0
True

trip_grid(bins: int | tuple = 10, log: bool = False, spatial_units=None, normalize: bool = False, hist_only: bool = False, plot: bool = True, **kwargs)

Returns a 2D histogram of trip.

Parameters:

• bins (int, optional) – Number of bins (Default value = 16)

• log (bool) – log scale histogram (Default value = False)

• spatial_units (str) – units for plotting

• normalize (bool) – normalize histogram into density plot

• hist_only (bool) – return histogram without plotting

Returns:

2D histogram as array image (matplotlib.collections.PathCollection: image of histogram

Return type:

hist (numpy.ndarray)

plot(n_coords: int | None = None, show_time=False, **kwargs)

Plot trajectory over period.

Parameters:

• n_coords (int) – Number of coordinates to plot

• **kwargs – additional keyword arguments to matplotlib.axes.Axes.scatter()

Returns:

Axes of plot

Return type:

ax (Axes)

plot_3d(**kwargs)

Plot 3D trajectory for single identity over period.

Args: trj (traja.TrajaDataFrame): trajectory n_coords (int, optional): Number of coordinates to plot **kwargs: additional keyword arguments to matplotlib.axes.Axes.scatter()

Returns:

collection that was plotted

Return type:

collection (PathCollection)

Note

Takes a while to plot large trajectories. Consider using first:

rt = trj.traja.rediscretize(R=1.) # Replace R with appropriate step length
rt.traja.plot_3d()

plot_flow(kind='quiver', **kwargs)

Plot grid cell flow.

Parameters:

• kind (str) – Kind of plot (eg, ‘quiver’,’surface’,’contour’,’contourf’,’stream’)

• **kwargs – additional keyword arguments to matplotlib.axes.Axes.scatter()

Returns:

Axes of plot

Return type:

ax (Axes)

plot_collection(colors=None, **kwargs)

apply_all(method, id_col=None, **kwargs)

Applies method to all trajectories and returns grouped dataframes or series

property xyz

Returns a numpy.ndarray of x,y,z coordinates (if z exists).

Returns:

xyz (numpy.ndarray) – x,y,z coordinates or x,y if z doesn’t exist

property xy

Returns a numpy.ndarray of x,y coordinates.

Parameters:

split (bool) – Split into separate x and y numpy.ndarrays

Returns:

xy (numpy.ndarray) – x,y coordinates (separate if split is True)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.xy
array([[0, 1],
       [1, 2],
       [2, 3]])

_check_has_time()

Check for presence of displacement time column.

__getattr__(name)

Catch all method calls which are not defined and forward to modules.

transitions(*args, **kwargs)

Calculate transition matrix

calc_derivatives(assign: bool = False)

Returns derivatives displacement and displacement_time.

Parameters:

assign (bool) – Assign output to TrajaDataFrame (Default value = False)

Returns:

Derivatives.

Return type:

derivs (OrderedDict)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3],'time':[0., 0.2, 0.4]})
>>> df.traja.calc_derivatives()
   displacement  displacement_time
0           NaN                0.0
1      1.414214                0.2
2      1.414214                0.4

get_derivatives() → DataFrame

Returns derivatives as DataFrame.

speed_intervals(faster_than: float | int | None = None, slower_than: float | int | None = None)

Returns TrajaDataFrame with speed time intervals.

Returns a dataframe of time intervals where speed is slower and/or faster than specified values.

Parameters:

• faster_than (float, optional) – Minimum speed threshold. (Default value = None)

• slower_than (float or int, optional) – Maximum speed threshold. (Default value = None)

Returns:

result (DataFrame) – time intervals as dataframe

Note

Implementation ported to Python, heavily inspired by Jim McLean’s trajr package.

to_shapely()

Returns shapely object for area, bounds, etc. functions.

Args:

Returns:

Shapely shape.

Return type:

shape (shapely.geometry.linestring.LineString)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> shape = df.traja.to_shapely()
>>> shape.is_closed
False

to_csv(filepath: str, **kwargs)

Export trajectory to CSV file.

Parameters:

• filepath – Path to save CSV file

• **kwargs – Additional arguments passed to pandas.to_csv()

Returns:

None

to_hdf(filepath: str, key: str = 'trajectory', **kwargs)

Export trajectory to HDF5 file.

Parameters:

• filepath – Path to save HDF5 file

• key – HDF5 group identifier (default: ‘trajectory’)

• **kwargs – Additional arguments passed to pandas.to_hdf()

Returns:

None

to_npy(filepath: str, columns: list | None = None)

Export trajectory to NumPy .npy file.

Parameters:

• filepath – Path to save .npy file

• columns – List of columns to export (default: [‘x’, ‘y’] or [‘x’, ‘y’, ‘z’])

Returns:

None

to_tensor(columns: list | None = None)

Convert trajectory to PyTorch tensor (if torch is available).

Parameters:

columns – List of columns to include (default: [‘x’, ‘y’] or [‘x’, ‘y’, ‘z’])

Returns:

Trajectory as tensor, or numpy array if torch not available

Return type:

torch.Tensor

Note

Requires PyTorch. Install with: pip install torch

extract_features() → DataFrame

Extract common features for machine learning.

Returns:

Feature matrix with columns like displacement, speed,

turn_angle, acceleration, etc.

Return type:

pd.DataFrame

Note

Useful for feeding into classical ML models or as additional features for DL.

augment_rotate(angle: float | None = None) → TrajaDataFrame

Rotate trajectory by angle (in degrees) for data augmentation.

Parameters:

angle (float, optional) – Rotation angle in degrees. If None, random angle [0, 360).

Returns:

Rotated trajectory

Return type:

traja.TrajaDataFrame

Note

Useful for training rotation-invariant deep learning models.

augment_noise(sigma: float = 0.1) → TrajaDataFrame

Add Gaussian noise to trajectory coordinates for data augmentation.

Parameters:

sigma (float) – Standard deviation of Gaussian noise relative to coordinate scale. Default 0.1 means 10% of the coordinate range.

Returns:

Noisy trajectory

Return type:

traja.TrajaDataFrame

Note

Useful for making deep learning models robust to measurement noise.

augment_reverse() → TrajaDataFrame

Reverse trajectory temporally for data augmentation.

Returns:

Time-reversed trajectory

Return type:

traja.TrajaDataFrame

Note

Useful for data augmentation when temporal direction is not important.

augment_scale(factor: float | None = None) → TrajaDataFrame

Scale trajectory coordinates for data augmentation.

Parameters:

factor (float, optional) – Scaling factor. If None, random factor in [0.8, 1.2].

Returns:

Scaled trajectory

Return type:

traja.TrajaDataFrame

Note

Useful for scale-invariant deep learning models.

augment_subsample(step: int | None = None) → TrajaDataFrame

Subsample trajectory by taking every nth point for data augmentation.

Parameters:

step (int, optional) – Subsample step. If None, random step in [2, 5].

Returns:

Subsampled trajectory

Return type:

traja.TrajaDataFrame

Note

Useful for training models on different temporal resolutions.

pad_trajectory(target_length: int, mode: str = 'edge', **kwargs) → TrajaDataFrame

Pad trajectory to target length for deep learning batching.

Parameters:

• target_length (int) – Desired trajectory length

• mode (str) – Padding mode - ‘edge’ (repeat last value), ‘constant’ (zeros), ‘linear’ (linear extrapolation). Default ‘edge’.

• **kwargs – Additional arguments passed to padding functions

Returns:

Padded trajectory

Return type:

traja.TrajaDataFrame

Raises:

ValueError – If target_length is less than current length

Note

Essential for batching variable-length trajectories in deep learning.

truncate_trajectory(target_length: int, mode: str = 'end') → TrajaDataFrame

Truncate trajectory to target length for deep learning batching.

Parameters:

• target_length (int) – Desired trajectory length

• mode (str) – Truncation mode - ‘end’ (keep first N), ‘start’ (keep last N), ‘random’ (random starting point). Default ‘end’.

Returns:

Truncated trajectory

Return type:

traja.TrajaDataFrame

Raises:

ValueError – If target_length is greater than current length

Note

Essential for batching variable-length trajectories in deep learning.

normalize_trajectory(scale: bool = True, center: bool = True) → TrajaDataFrame

Normalize trajectory coordinates for deep learning.

Parameters:

• scale (bool) – Scale to unit variance. Default True.

• center (bool) – Center to zero mean. Default True.

Returns:

Normalized trajectory

Return type:

traja.TrajaDataFrame

Note

Normalization improves deep learning convergence and performance.

plot_interactive(**kwargs)

Create interactive 2D or 3D trajectory plot using plotly.

Parameters:

**kwargs – Additional arguments passed to plotly

Returns:

Interactive plot figure

Return type:

plotly.graph_objs.Figure

Note

Requires plotly: pip install plotly

Example

>>> fig = df.traja.plot_interactive()
>>> fig.show()

plot_heatmap(bins: int = 50, cmap: str = 'hot', **kwargs)

Plot 2D heatmap showing time spent in each location.

Parameters:

• bins (int) – Number of bins for 2D histogram. Default 50.

• cmap (str) – Matplotlib colormap name. Default ‘hot’.

• **kwargs – Additional arguments passed to plt.imshow

Returns:

Heatmap axes

Return type:

matplotlib.axes.Axes

Example

>>> ax = df.traja.plot_heatmap(bins=30)
>>> plt.show()

plot_speed(**kwargs)

Plot speed over time.

Parameters:

**kwargs – Additional arguments passed to plt.plot

Returns:

Speed plot axes

Return type:

matplotlib.axes.Axes

Example

>>> ax = df.traja.plot_speed()
>>> plt.show()

plot_acceleration(**kwargs)

Plot acceleration over time.

Parameters:

**kwargs – Additional arguments passed to plt.plot

Returns:

Acceleration plot axes

Return type:

matplotlib.axes.Axes

Raises:

ValueError – If time column is not available

Example

>>> ax = df.traja.plot_acceleration()
>>> plt.show()

plot_trajectory_components(figsize=(12, 8))

Plot comprehensive trajectory analysis with multiple subplots.

Shows: trajectory path, x/y components, speed, and displacement.

Parameters:

figsize (tuple) – Figure size. Default (12, 8).

Returns:

Figure with subplots

Return type:

matplotlib.figure.Figure

Example

>>> fig = df.traja.plot_trajectory_components()
>>> plt.show()

calc_displacement(assign: bool = True) → Series

Returns Series of float with displacement between consecutive indices.

Parameters:

assign (bool, optional) – Assign displacement to TrajaAccessor (Default value = True)

Returns:

Displacement series.

Return type:

displacement (pandas.Series)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.calc_displacement()
0         NaN
1    1.414214
2    1.414214
Name: displacement, dtype: float64

calc_angle(assign: bool = True) → Series

Returns Series with angle between steps as a function of displacement with regard to x axis.

Parameters:

assign (bool, optional) – Assign turn angle to TrajaAccessor (Default value = True)

Returns:

Angle series.

Return type:

angle (pandas.Series)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.calc_angle()
0     NaN
1    45.0
2    45.0
dtype: float64

scale(scale: float, spatial_units: str = 'm')

Scale trajectory when converting, eg, from pixels to meters.

Parameters:

• scale (float) – Scale to convert coordinates

• spatial_units (str., optional) – Spatial units (eg, ‘m’) (Default value = “m”)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.scale(0.1)
>>> df
     x    y
0  0.0  0.1
1  0.1  0.2
2  0.2  0.3

rediscretize(R: float)

Resample a trajectory to a constant step length. R is rediscretized step length.

Parameters:

R (float) – Rediscretized step length (eg, 0.02)

Returns:

rediscretized trajectory

Return type:

rt (traja.TrajaDataFrame)

Note

Based on the appendix in Bovet and Benhamou, (1988) and Jim McLean’s trajr implementation.

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.rediscretize(1.)
          x         y
0  0.000000  1.000000
1  0.707107  1.707107
2  1.414214  2.414214

grid_coordinates(**kwargs)

calc_heading(assign: bool = True)

Calculate trajectory heading.

Parameters:

assign (bool) – (Default value = True)

Returns:

heading as a Series

Return type:

heading (pandas.Series)

..doctest:

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.calc_heading()
0     NaN
1    45.0
2    45.0
Name: heading, dtype: float64

calc_turn_angle(assign: bool = True)

Calculate turn angle.

Parameters:

assign (bool) – (Default value = True)

Returns:

Turn angle

Return type:

turn_angle (Series)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> df.traja.calc_turn_angle()
0    NaN
1    NaN
2    0.0
Name: turn_angle, dtype: float64

Plotting functions

The following methods are available via traja.plotting:

plotting.animate(polar: bool = True, save: bool = False)

Animate trajectory.

Parameters:

• polar (bool) – include polar bar chart with turn angle

• save (bool) – save video to trajectory.mp4

Returns:

animation

Return type:

anim (matplotlib.animation.FuncAnimation)

plotting.bar_plot(bins: int | tuple | None = None, **kwargs) → Axes

Plot trajectory for single animal over period.

Parameters:

• trj (traja.TrajaDataFrame) – trajectory

• bins (int or tuple) – number of bins for x and y

• **kwargs – additional keyword arguments to mpl_toolkits.mplot3d.Axed3D.plot()

Returns:

Axes of plot

Return type:

ax (PathCollection)

plotting.color_dark(ax: Axes | None = None, start: int = 19, end: int = 7)

Color dark phase in plot. :param series: :type series: pd.Series :param ax (: class: ~matplotlib.axes.Axes): axis to plot on (eg, plt.gca()) :param start: start of dark period/night :type start: int :param end: end of dark period/day :type end: hour

Returns:

Axes of plot

Return type:

ax (AxesSubplot)

plotting.fill_ci(window: int | str) → Figure

Fill confidence interval defined by SEM over mean of window. Window can be interval or offset, eg, ’30s’.

plotting.find_runs() -> (<class 'numpy.ndarray'>, <class 'numpy.ndarray'>, <class 'numpy.ndarray'>)

Find runs of consecutive items in an array. From https://gist.github.com/alimanfoo/c5977e87111abe8127453b21204c1065.

plotting.plot(n_coords: int | None = None, show_time: bool = False, accessor: TrajaAccessor | None = None, ax=None, **kwargs) → PathCollection

Plot trajectory for single animal over period.

Parameters:

• trj (traja.TrajaDataFrame) – trajectory

• n_coords (int, optional) – Number of coordinates to plot

• show_time (bool) – Show colormap as time

• accessor (TrajaAccessor, optional) – TrajaAccessor instance

• ax (Axes) – axes for plotting

• interactive (bool) – show plot immediately

• **kwargs – additional keyword arguments to matplotlib.axes.Axes.scatter()

Returns:

collection that was plotted

Return type:

collection (PathCollection)

plotting.plot_3d(**kwargs) → PathCollection

Plot 3D trajectory for single identity over period.

If trajectory has ‘z’ column, plots x, y, z spatial coordinates. Otherwise, plots x, y with time as the third dimension.

Parameters:

• trj (traja.TrajaDataFrame) – trajectory

• n_coords (int, optional) – Number of coordinates to plot

• **kwargs – additional keyword arguments to matplotlib.axes.Axes.scatter()

Returns:

Axes of plot

Return type:

ax (PathCollection)

Note

Takes a while to plot large trajectories. Consider using first:

rt = trj.traja.rediscretize(R=1.) # Replace R with appropriate step length
rt.traja.plot_3d()

plotting.plot_actogram(dark=(19, 7), ax: Axes | None = None, **kwargs)

Plot activity or displacement as an actogram.

Note

For published example see Eckel-Mahan K, Sassone-Corsi P. Phenotyping Circadian Rhythms in Mice. Curr Protoc Mouse Biol. 2015;5(3):271-281. Published 2015 Sep 1. doi:10.1002/9780470942390.mo140229

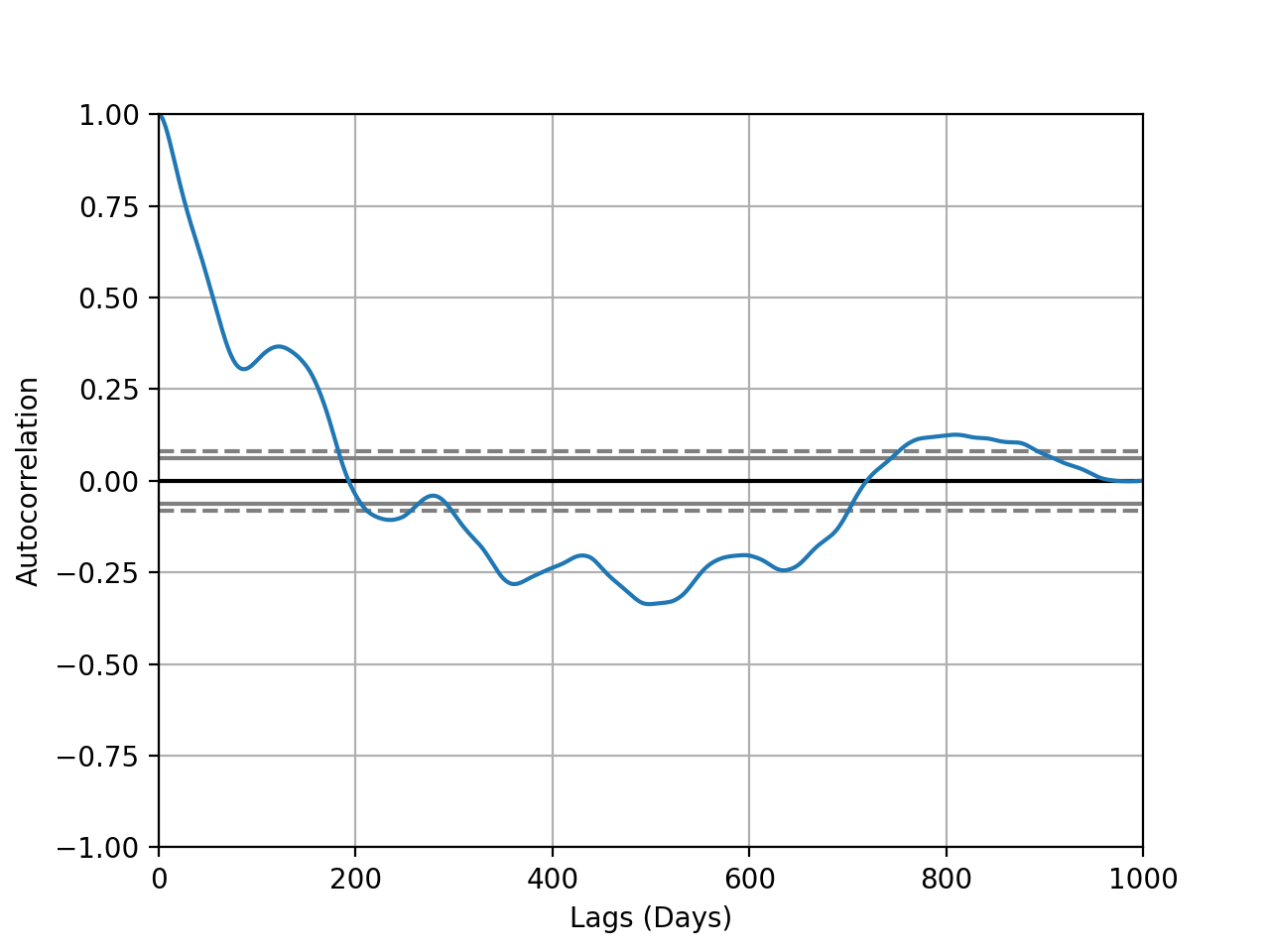

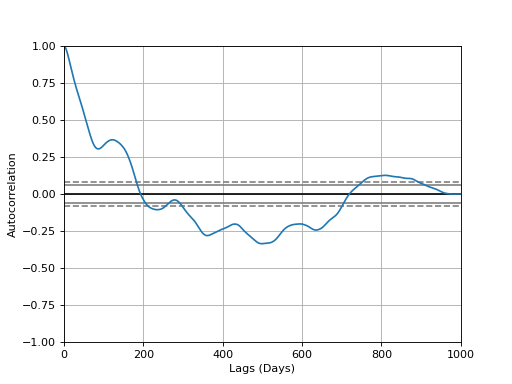

plotting.plot_autocorrelation(coord: str = 'y', unit: str = 'Days', xmax: int = 1000, interactive: bool = True)

Plot autocorrelation of given coordinate.

Parameters:

• Trajectory (trj -)

• 'y' (coord - 'x' or)

• string (unit -)

• eg

• 'Days'

• value (xmax - max xaxis)

• immediately (interactive - Plot)

Returns:

Matplotlib Figure

(Source code, png, hires.png, pdf)

Note

Convenience wrapper for pandas autocorrelation_plot().

plotting.plot_contour(bins: int | tuple | None = None, filled: bool = True, quiver: bool = True, contourplot_kws: dict = {}, contourfplot_kws: dict = {}, quiverplot_kws: dict = {}, ax: Axes | None = None, **kwargs) → Axes

Plot average flow from each grid cell to neighbor.

Parameters:

• trj – Traja DataFrame

• bins (int or tuple) – Tuple of x,y bin counts; if bins is int, bin count of x, with y inferred from aspect ratio

• filled (bool) – Contours filled

• quiver (bool) – Quiver plot

• contourplot_kws – Additional keyword arguments for contour()

• contourfplot_kws – Additional keyword arguments for contourf()

• quiverplot_kws – Additional keyword arguments for quiver()

• ax (optional) – Matplotlib Axes

Returns:

Axes of quiver plot

Return type:

ax (Axes)

plotting.plot_clustermap(rule: str | None = None, nr_steps=None, colors: List[str | int] | None = None, **kwargs)

Plot cluster map / dendrogram of trajectories with DatetimeIndex.

Parameters:

• displacements – list of pd.Series, outputs of traja.calc_displacement()

• rule – how to resample series, eg ’30s’ for 30-seconds

• nr_steps – select first N samples for clustering

• colors – list of colors (eg, ‘b’,’r’) to map to each trajectory

• kwargs – keyword arguments for seaborn.clustermap()

Returns:

a seaborn.matrix.ClusterGrid() instance

Return type:

cg

Note

Requires seaborn to be installed. Install it with ‘pip install seaborn’.

plotting.plot_flow(kind: str = 'quiver', *args, contourplot_kws: dict = {}, contourfplot_kws: dict = {}, streamplot_kws: dict = {}, quiverplot_kws: dict = {}, surfaceplot_kws: dict = {}, **kwargs) → Figure

Plot average flow from each grid cell to neighbor.

Parameters:

• bins (int or tuple) – Tuple of x,y bin counts; if bins is int, bin count of x, with y inferred from aspect ratio

• kind (str) – Choice of ‘quiver’,’contourf’,’stream’,’surface’. Default is ‘quiver’.

• contourplot_kws – Additional keyword arguments for contour()

• contourfplot_kws – Additional keyword arguments for contourf()

• streamplot_kws – Additional keyword arguments for streamplot()

• quiverplot_kws – Additional keyword arguments for quiver()

• surfaceplot_kws – Additional keyword arguments for plot_surface()

Returns:

Axes of plot

Return type:

ax (Axes)

plotting.plot_quiver(bins: int | tuple | None = None, quiverplot_kws: dict = {}, **kwargs) → Axes

Plot average flow from each grid cell to neighbor.

Parameters:

• bins (int or tuple) – Tuple of x,y bin counts; if bins is int, bin count of x, with y inferred from aspect ratio

• quiverplot_kws – Additional keyword arguments for quiver()

Returns:

Axes of quiver plot

Return type:

ax (Axes)

plotting.plot_stream(bins: int | tuple | None = None, cmap: str = 'viridis', contourfplot_kws: dict = {}, contourplot_kws: dict = {}, streamplot_kws: dict = {}, **kwargs) → Figure

Plot average flow from each grid cell to neighbor.

Parameters:

• bins (int or tuple) – Tuple of x,y bin counts; if bins is int, bin count of x, with y inferred from aspect ratio

• contourplot_kws – Additional keyword arguments for contour()

• contourfplot_kws – Additional keyword arguments for contourf()

• streamplot_kws – Additional keyword arguments for streamplot()

Returns:

Axes of stream plot

Return type:

ax (Axes)

plotting.plot_surface(bins: int | tuple | None = None, cmap: str = 'viridis', **surfaceplot_kws: dict) → Figure

Plot surface of flow from each grid cell to neighbor in 3D.

Parameters:

• bins (int or tuple) – Tuple of x,y bin counts; if bins is int, bin count of x, with y inferred from aspect ratio

• cmap (str) – color map

• surfaceplot_kws – Additional keyword arguments for plot_surface()

Returns:

Axes of quiver plot

Return type:

ax (Axes)

plotting.plot_transition_matrix(interactive=True, **kwargs) → AxesImage

Plot transition matrix.

Parameters:

• data (trajectory or square transition matrix)

• interactive (bool) – show plot

• kwargs – kwargs to traja.grid_coordinates()

Returns:

axesimage (matplotlib.image.AxesImage)

plotting.plot_xy(*args: Optional, **kwargs: Optional)

Plot trajectory from xy values.

Parameters:

• xy (np.ndarray) – xy values of dimensions N x 2

• *args – Plot args

• **kwargs – Plot kwargs

plotting.polar_bar(feature: str = 'turn_angle', bin_size: int = 2, threshold: float = 0.001, overlap: bool = True, ax: Axes | None = None, **plot_kws: str) → Axes

Plot polar bar chart.

Parameters:

• trj (traja.TrajaDataFrame) – trajectory

• feature (str) – Options: ‘turn_angle’, ‘heading’

• bin_size (int) – width of bins

• threshold (float) – filter for step distance

• overlap (bool) – Overlapping shows all values, if set to false is a histogram

Returns:

Axes of plot

Return type:

ax (PathCollection)

plotting.plot_prediction(dataloader, index, scaler=None)

plotting.sans_serif()

Convenience function for changing plot text to serif font.

plotting.stylize_axes()

Add top and right border to plot, set ticks.

plotting.trip_grid(bins: tuple | int = 10, log: bool = False, spatial_units: str | None = None, normalize: bool = False, hist_only: bool = False, **kwargs) → Tuple[ndarray, PathCollection]

Generate a heatmap of time spent by point-to-cell gridding.

Parameters:

• bins (int, optional) – Number of bins (Default value = 10)

• log (bool) – log scale histogram (Default value = False)

• spatial_units (str) – units for plotting

• normalize (bool) – normalize histogram into density plot

• hist_only (bool) – return histogram without plotting

Returns:

2D histogram as array image (matplotlib.collections.PathCollection: image of histogram

Return type:

hist (numpy.ndarray)

Analysis

The following methods are available via traja.trajectory:

trajectory.calc_angle(unit: str = 'degrees', lag: int = 1)

Returns a Series with angle between steps as a function of displacement with regard to x axis.

Parameters:

• trj (TrajaDataFrame) – Trajectory

• unit (str) – return angle in radians or degrees (Default value: ‘degrees’)

• lag (int) – time steps between angle calculation (Default value: 1)

Returns:

Angle series.

Return type:

angle (pandas.Series)

trajectory.calc_convex_hull() → array

Identify containing polygonal convex hull for full Trajectory Interior points filtered with traja.trajectory.inside() method, takes quadrilateral using extrema points (minx, maxx, miny, maxy) - convex hull points MUST all be outside such a polygon. Returns an array with all points in the convex hull.

Implementation of Graham Scan technique <https://en.wikipedia.org/wiki/Graham_scan>_.

Returns:

n x 2 (x,y) array

Return type:

point_arr (ndarray)

>> #Quick visualizaation
>> import matplotlib.pyplot as plt
>> df = traja.generate(n=10000, convex_hull=True)
>> xs, ys = [*zip(*df.convex_hull)]
>> _ = plt.plot(df.x.values, df.y.values, 'o', 'blue')
>> _ = plt.plot(xs, ys, '-o', color='red')
>> _ = plt.show()

Note

Incorporates Akl-Toussaint method for filtering interior points.

Note

Performative loss beyond ~100,000-200,000 points, algorithm has O(nlogn) complexity.

trajectory.calc_derivatives()

Returns derivatives displacement and displacement_time as DataFrame.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

Derivatives.

Return type:

derivs (DataFrame)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3],'time':[0., 0.2, 0.4]})
>>> traja.calc_derivatives(df)
   displacement  displacement_time
0           NaN                0.0
1      1.414214                0.2
2      1.414214                0.4

trajectory.calc_displacement(lag=1)

Returns a Series of float displacement between consecutive indices. Supports both 2D and 3D trajectories.

Parameters:

• trj (TrajaDataFrame) – Trajectory

• lag (int) – time steps between displacement calculation

Returns:

Displacement series.

Return type:

displacement (pandas.Series)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> traja.calc_displacement(df)
0         NaN
1    1.414214
2    1.414214
Name: displacement, dtype: float64

trajectory.calc_heading()

Calculate trajectory heading.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

heading as a Series

Return type:

heading (pandas.Series)

..doctest:

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> traja.calc_heading(df)
0     NaN
1    45.0
2    45.0
Name: heading, dtype: float64

trajectory.calc_turn_angle()

Return a Series of floats with turn angles.

Parameters:

trj (traja.frame.TrajaDataFrame) – Trajectory

Returns:

Turn angle

Return type:

turn_angle (Series)

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> traja.calc_turn_angle(df)
0    NaN
1    NaN
2    0.0
Name: turn_angle, dtype: float64

trajectory.calc_flow_angles()

Calculate average flow between grid indices.

trajectory.cartesian_to_polar() → Tuple[ndarray, ndarray]

Convert numpy.ndarray xy to polar coordinates r and theta.

Parameters:

xy (numpy.ndarray) – x,y coordinates

Returns:

step-length and angle

Return type:

r, theta (tuple of float)

trajectory.coords_to_flow(bins: int | tuple | None = None)

Calculate grid cell flow from trajectory.

Parameters:

• trj (trajectory)

• bins (int or tuple)

Returns:

X coordinates of arrow locations Y (ndarray): Y coordinates of arrow locations U (ndarray): X component of vector dataset V (ndarray): Y component of vector dataset

Return type:

X (ndarray)

trajectory.determine_colinearity(p1: ndarray, p2: ndarray)

Determine whether trio of points constitute a right turn, or whether they are left turns (or colinear/straight line).

Parameters:

• p0 (ndarray) – First point [x,y] in line

• p1 (ndarray) – Second point [x,y] in line

• p2 (ndarray) – Third point [x,y] in line

Returns:

(bool)

trajectory.distance_between(B: TrajaDataFrame, method='dtw')

Returns distance between two trajectories.

Parameters:

• A (TrajaDataFrame) – Trajectory 1

• B (TrajaDataFrame) – Trajectory 2

• method (str) – dtw for dynamic time warping, hausdorff for Hausdorff

Returns:

Distance

Return type:

distance (float)

trajectory.distance() → float

Calculates the distance from start to end of trajectory, also called net distance, displacement, or bee-line from start to finish. Supports both 2D and 3D trajectories.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

distance (float)

>> df = traja.generate()
>> traja.distance(df)
117.01507823153617

trajectory.euclidean(v, w=None)

Computes the Euclidean distance between two 1-D arrays.

The Euclidean distance between 1-D arrays u and v, is defined as

\[ \begin{align}\begin{aligned}{\|u-v\|}_2\\\left(\sum{(w_i |(u_i - v_i)|^2)}\right)^{1/2}\end{aligned}\end{align} \]

Parameters:

• u ((N,) array_like) – Input array.

• v ((N,) array_like) – Input array.

• w ((N,) array_like, optional) – The weights for each value in u and v. Default is None, which gives each value a weight of 1.0

Returns:

euclidean – The Euclidean distance between vectors u and v.

Return type:

double

Examples

>>> from scipy.spatial import distance
>>> distance.euclidean([1, 0, 0], [0, 1, 0])
1.4142135623730951
>>> distance.euclidean([1, 1, 0], [0, 1, 0])
1.0

trajectory.expected_sq_displacement(n: int = 0, eqn1: bool = True) → float

Expected displacement.

Note

This method is experimental and needs testing.

trajectory.fill_in_traj()

trajectory.from_xy()

Convenience function for initializing TrajaDataFrame with x,y coordinates.

Parameters:

xy (numpy.ndarray) – x,y coordinates

Returns:

Trajectory as dataframe

Return type:

traj_df (TrajaDataFrame)

>>> import numpy as np
>>> xy = np.array([[0,1],[1,2],[2,3]])
>>> traja.from_xy(xy)
   x  y
0  0  1
1  1  2
2  2  3

trajectory.generate(random: bool = True, step_length: int = 2, angular_error_sd: float = 0.5, angular_error_dist: Callable | None = None, linear_error_sd: float = 0.2, linear_error_dist: Callable | None = None, fps: float = 50, spatial_units: str = 'm', seed: int | None = None, convex_hull: bool = False, **kwargs)

Generates a trajectory.

If random is True, the trajectory will be a correlated random walk/idiothetic directed walk (Kareiva & Shigesada, 1983), corresponding to an animal navigating without a compass (Cheung, Zhang, Stricker, & Srinivasan, 2008). If random is False, it will be(np.ndarray) a directed walk/allothetic directed walk/oriented path, corresponding to an animal navigating with a compass (Cheung, Zhang, Stricker, & Srinivasan, 2007, 2008).

By default, for both random and directed walks, errors are normally distributed, unbiased, and independent of each other, so are simple directed walks in the terminology of Cheung, Zhang, Stricker, & Srinivasan, (2008). This behaviour may be modified by specifying alternative values for the angular_error_dist and/or linear_error_dist parameters.

The initial angle (for a random walk) or the intended direction (for a directed walk) is 0 radians. The starting position is (0, 0).

Parameters:

• n (int) – (Default value = 1000)

• random (bool) – (Default value = True)

• step_length – (Default value = 2)

• angular_error_sd (float) – (Default value = 0.5)

• angular_error_dist (Callable) – (Default value = None)

• linear_error_sd (float) – (Default value = 0.2)

• linear_error_dist (Callable) – (Default value = None)

• fps (float) – (Default value = 50)

• convex_hull (bool) – (Default value = False)

• spatial_units – (Default value = ‘m’)

• **kwargs – Additional arguments

Returns:

Trajectory

Return type:

trj (traja.frame.TrajaDataFrame)

Note

Based on Jim McLean’s trajr, ported to Python.

Reference: McLean, D. J., & Skowron Volponi, M. A. (2018). trajr: An R package for characterisation of animal trajectories. Ethology, 124(6), 440-448. https://doi.org/10.1111/eth.12739.

trajectory.get_derivatives()

Returns derivatives displacement, displacement_time, speed, speed_times, acceleration, acceleration_times as dictionary.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

Derivatives

Return type:

derivs (DataFrame)

>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3],'time':[0.,0.2,0.4]})
>> df.traja.get_derivatives()
   displacement  displacement_time     speed  speed_times  acceleration  acceleration_times
0           NaN                0.0       NaN          NaN           NaN                 NaN
1      1.414214                0.2  7.071068          0.2           NaN                 NaN
2      1.414214                0.4  7.071068          0.4           0.0                 0.4

trajectory.grid_coordinates(bins: int | tuple | None = None, xlim: tuple | None = None, ylim: tuple | None = None, assign: bool = False)

Returns DataFrame of trajectory discretized into 2D lattice grid coordinates. :param trj: Trajectory :type trj: ~`traja.frame.TrajaDataFrame` :param bins: :type bins: tuple or int :param xlim: :type xlim: tuple :param ylim: :type ylim: tuple :param assign: Return updated original dataframe :type assign: bool

Returns:

Trajectory is assign=True otherwise pd.DataFrame

Return type:

trj (TrajaDataFrame`)

trajectory.inside(bounds_xs: list, bounds_ys: list, minx: float, maxx: float, miny: float, maxy: float)

Determine whether point lies inside or outside of polygon formed by “extrema” points - minx, maxx, miny, maxy. Optimized to be run as broadcast function in numpy along axis.

Parameters:

• pt (ndarray) – Point to test whether inside or outside polygon

• bounds_xs (list or tuple) – x-coordinates of polygon vertices, in sequence

• bounds_ys (list or tuple) – y-coordinates of polygon vertices, same sequence

• minx (float) – minimum x coordinate value

• maxx (float) – maximum x coordinate value

• miny (float) – minimum y coordinate value

• maxy (float) – maximum y coordinate value

Returns:

(bool)

Note

Ported to Python from C implementation by W. Randolph Franklin (WRF): <https://wrf.ecse.rpi.edu/Research/Short_Notes/pnpoly.html>

Boolean return “True” for OUTSIDE polygon, meaning it is within subset of possible convex hull coordinates.

trajectory.length() → float

Calculates the cumulative length of a trajectory.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

length (float)

>> df = traja.generate()
>> traja.length(df)
2001.142339606066

trajectory.polar_to_z(theta: float) → complex

Converts polar coordinates r and theta to complex number z.

Parameters:

• r (float) – step size

• theta (float) – angle

Returns:

complex number z

Return type:

z (complex)

trajectory.rediscretize_points(R: float | int, time_out=False)

Returns a TrajaDataFrame rediscretized to a constant step length R.

Parameters:

• trj (traja.frame.TrajaDataFrame) – Trajectory

• R (float) – Rediscretized step length (eg, 0.02)

• time_out (bool) – Include time corresponding to time intervals in output

Returns:

rediscretized trajectory

Return type:

rt (numpy.ndarray)

trajectory.resample_time(step_time: str, new_fps: bool | None = None)

Returns a TrajaDataFrame resampled to consistent step_time intervals.

step_time should be expressed as a number-time unit combination, eg “2S” for 2 seconds and “2100L” for 2100 milliseconds.

Parameters:

• trj (TrajaDataFrame) – Trajectory

• step_time (str) – step time interval / offset string (eg, ‘2S’ (seconds), ‘50L’ (milliseconds), ‘50N’ (nanoseconds))

• new_fps (bool, optional) – new fps

Results:

trj (TrajaDataFrame): Trajectory

>>> from traja import generate, resample_time
>>> df = generate()
>>> resampled = resample_time(df, '50L') # 50 milliseconds
>>> resampled.head()
                                 x         y
time
1970-01-01 00:00:00.000   0.000000  0.000000
1970-01-01 00:00:00.050   0.919113  4.022971
1970-01-01 00:00:00.100  -1.298510  5.423373
1970-01-01 00:00:00.150  -6.057524  4.708803
1970-01-01 00:00:00.200 -10.347759  2.108385

trajectory.return_angle_to_point(p0: ndarray)

Calculate angle of points as coordinates in relation to each other. Designed to be broadcast across all trajectory points for a single origin point p0.

Parameters:

• p1 (np.ndarray) – Test point [x,y]

• p0 (np.ndarray) – Origin/source point [x,y]

Returns:

r (float)

trajectory.rotate(angle: float | int = 0, origin: tuple | None = None)

Returns a TrajaDataFrame Rotate a trajectory angle in radians.

Parameters:

• trj (traja.frame.TrajaDataFrame) – Trajectory

• angle (float) – angle in radians

• origin (tuple. optional) – rotate around point (x,y)

Returns:

Trajectory

Return type:

trj (traja.frame.TrajaDataFrame)

Note

Based on Lyle Scott’s implementation.

trajectory.smooth_sg(w: int | None = None, p: int = 3) → TrajaDataFrame

Returns DataFrame of trajectory after Savitzky-Golay filtering.

Parameters:

• trj (TrajaDataFrame) – Trajectory

• w (int) – window size (Default value = None)

• p (int) – polynomial order (Default value = 3)

Returns:

Trajectory

Return type:

trj (TrajaDataFrame)

>> df = traja.generate()
>> traja.smooth_sg(df, w=101).head()
           x          y  time
0 -11.194803  12.312742  0.00
1 -10.236337  10.613720  0.02
2  -9.309282   8.954952  0.04
3  -8.412910   7.335925  0.06
4  -7.546492   5.756128  0.08

trajectory.speed_intervals(faster_than: float | None = None, slower_than: float | None = None) → DataFrame

Calculate speed time intervals.

Returns a dictionary of time intervals where speed is slower and/or faster than specified values.

Parameters:

• faster_than (float, optional) – Minimum speed threshold. (Default value = None)

• slower_than (float or int, optional) – Maximum speed threshold. (Default value = None)

Returns:

result (DataFrame) – time intervals as dataframe

Note

Implementation ported to Python, heavily inspired by Jim McLean’s trajr package.

>> df = traja.generate()
>> intervals = traja.speed_intervals(df, faster_than=100)
>> intervals.head()
   start_frame  start_time  stop_frame  stop_time  duration
0            1        0.02           3       0.06      0.04
1            4        0.08           8       0.16      0.08
2           10        0.20          11       0.22      0.02
3           12        0.24          15       0.30      0.06
4           17        0.34          18       0.36      0.02

trajectory.step_lengths() → Series

Length of the steps of trj.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

Step lengths

Return type:

pd.Series

trajectory.to_shapely()

Returns shapely object for area, bounds, etc. functions.

Parameters:

trj (TrajaDataFrame) – Trajectory

Returns:

shapely.geometry.linestring.LineString – Shapely shape.

>>> df = traja.TrajaDataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> shape = traja.to_shapely(df)
>>> shape.is_closed
False

trajectory.traj_from_coords(x_col=1, y_col=2, time_col: str | None = None, fps: float | int = 4, spatial_units: str = 'm', time_units: str = 's') → TrajaDataFrame

Create TrajaDataFrame from coordinates.

Parameters:

• track – N x 2 numpy array or pandas DataFrame with x and y columns

• x_col – column index or x column name

• y_col – column index or y column name

• time_col – name of time column

• fps – Frames per seconds

• spatial_units – default m, optional

• time_units – default s, optional

Returns:

TrajaDataFrame

Return type:

trj

>> xy = np.random.random((1000, 2))
>> trj = traja.traj_from_coord(xy)
>> assert trj.shape == (1000,4) # columns x, y, time, dt

trajectory.transition_matrix()

Returns np.ndarray of Markov transition probability matrix for grid cell transitions.

Parameters:

grid_indices1D (np.ndarray)

Returns:

M (numpy.ndarray)

trajectory.transitions(**kwargs)

Get first-order Markov model for transitions between grid cells.

Parameters:

• trj (trajectory)

• kwargs – kwargs to traja.grid_coordinates()

io functions

The following methods are available via traja.parsers:

parsers.read_file(id: str | None = None, xcol: str | None = None, ycol: str | None = None, parse_dates: str | bool = False, xlim: tuple | None = None, ylim: tuple | None = None, spatial_units: str = 'm', fps: float | None = None, **kwargs)

Convenience method wrapping pandas read_csv and initializing metadata.

Parameters:

• filepath (str) – path to csv file with x, y and time (optional) columns

• id (str) – id for trajectory

• xcol (str) – name of column containing x coordinates

• ycol (str) – name of column containing y coordinates

• parse_dates (Union[list,bool]) – The behavior is as follows: - boolean. if True -> try parsing the index. - list of int or names. e.g. If [1, 2, 3] -> try parsing columns 1, 2, 3 each as a separate date column.

• xlim (tuple) – x limits (min,max) for plotting

• ylim (tuple) – y limits (min,max) for plotting

• spatial_units (str) – for plotting (eg, ‘cm’)

• fps (float) – for time calculations

• **kwargs – Additional arguments for pandas.read_csv().

Returns:

Trajectory

Return type:

traj_df (TrajaDataFrame)

parsers.from_df(xcol=None, ycol=None, time_col=None, **kwargs)

Returns a traja.frame.TrajaDataFrame from a pandas DataFrame.

Parameters:

• df (pandas.DataFrame) – Trajectory as pandas DataFrame

• xcol (str)

• ycol (str)

• timecol (str)

Returns:

Trajectory

Return type:

traj_df (TrajaDataFrame)

>>> df = pd.DataFrame({'x':[0,1,2],'y':[1,2,3]})
>>> traja.from_df(df)
   x  y
0  0  1
1  1  2
2  2  3

TrajaDataFrame

A TrajaDataFrame is a tabular data structure that contains x, y, and time columns.

All pandas DataFrame methods are also available, although they may not operate in a meaningful way on the x, y, and time columns.

Inheritance diagram:

digraph inheritancecb3f264363 { bgcolor=transparent; rankdir=LR; size="8.0, 12.0"; "pandas.core.accessor.DirNamesMixin" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled"]; "pandas.core.arraylike.OpsMixin" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled"]; "pandas.core.base.PandasObject" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled",tooltip="Baseclass for various pandas objects."]; "pandas.core.accessor.DirNamesMixin" -> "pandas.core.base.PandasObject" [arrowsize=0.5,style="setlinewidth(0.5)"]; "pandas.core.frame.DataFrame" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled",tooltip="Two-dimensional, size-mutable, potentially heterogeneous tabular data."]; "pandas.core.generic.NDFrame" -> "pandas.core.frame.DataFrame" [arrowsize=0.5,style="setlinewidth(0.5)"]; "pandas.core.arraylike.OpsMixin" -> "pandas.core.frame.DataFrame" [arrowsize=0.5,style="setlinewidth(0.5)"]; "pandas.core.generic.NDFrame" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled",tooltip="N-dimensional analogue of DataFrame. Store multi-dimensional in a"]; "pandas.core.base.PandasObject" -> "pandas.core.generic.NDFrame" [arrowsize=0.5,style="setlinewidth(0.5)"]; "pandas.core.indexing.IndexingMixin" -> "pandas.core.generic.NDFrame" [arrowsize=0.5,style="setlinewidth(0.5)"]; "pandas.core.indexing.IndexingMixin" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled",tooltip="Mixin for adding .loc/.iloc/.at/.iat to Dataframes and Series."]; "traja.frame.TrajaDataFrame" [fillcolor=white,fontname="Vera Sans, DejaVu Sans, Liberation Sans, Arial, Helvetica, sans",fontsize=10,height=0.25,shape=box,style="setlinewidth(0.5),filled",tooltip="A TrajaDataFrame object is a subclass of pandas :class:`<~pandas.dataframe.DataFrame>`."]; "pandas.core.frame.DataFrame" -> "traja.frame.TrajaDataFrame" [arrowsize=0.5,style="setlinewidth(0.5)"]; }

TrajaCollection

A TrajaCollection holds multiple trajectories for analyzing and comparing trajectories. It has limited accessibility to lower-level methods.

class traja.frame.TrajaCollection(trjs: TrajaDataFrame | DataFrame | dict, id_col: str | None = None, **kwargs)

Collection of trajectories.

TrajaCollection.apply_all(method, **kwargs)

Applies method to all trajectories

Parameters:

method

Returns:

dataframe or series

>>> trjs = {ind: traja.generate(seed=ind) for ind in range(3)}
>>> coll = traja.TrajaCollection(trjs)
>>> angles = coll.apply_all(traja.calc_angle)

TrajaCollection.plot(colors=None, **kwargs)

Plot collection of trajectories with colors assigned to each id.

>>> trjs = {ind: traja.generate(seed=ind) for ind in range(3)}
>>> coll = traja.TrajaCollection(trjs)
>>> coll.plot()

API Pages

TrajaDataFrame(*args, **kwargs)	A TrajaDataFrame object is a subclass of pandas <~pandas.dataframe.DataFrame>.
TrajaCollection(trjs[, id_col])	Collection of trajectories.
read_file(filepath[, id, xcol, ycol, ...])	Convenience method wrapping pandas read_csv and initializing metadata.
